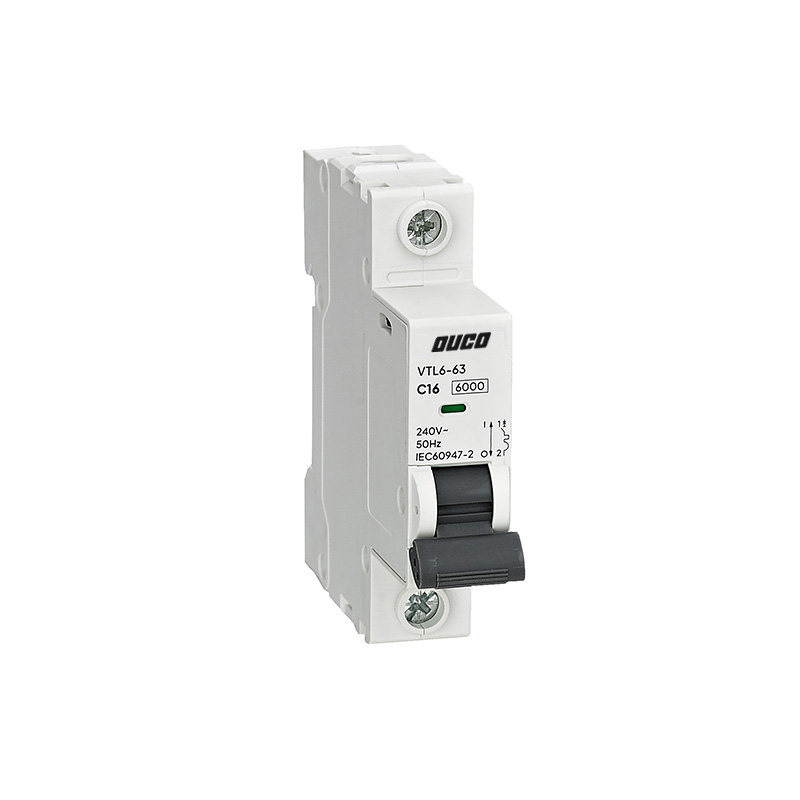

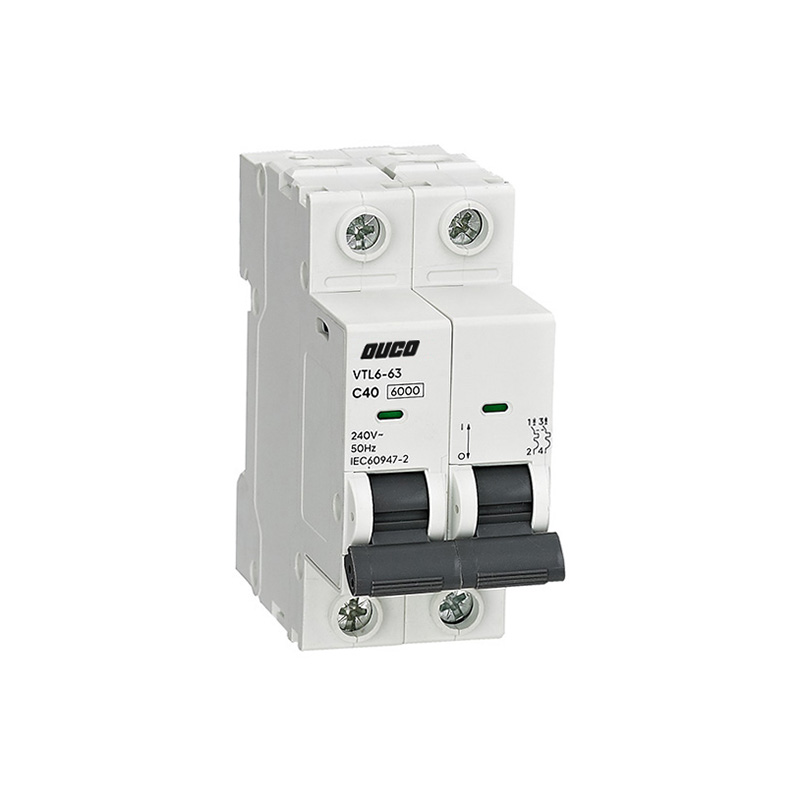

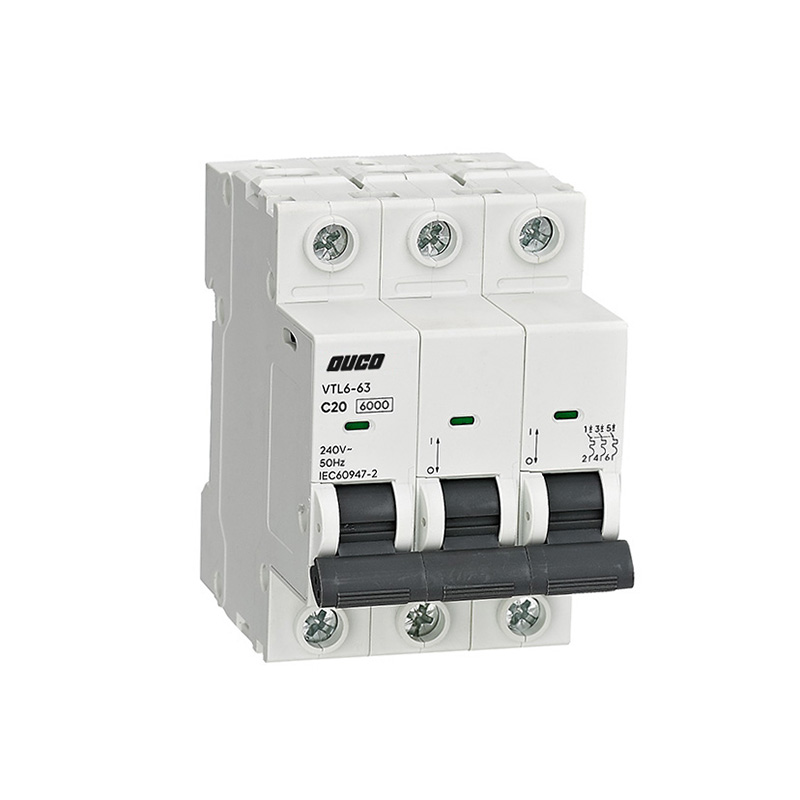

VTL6-63 ECO Series MCBs
Description:
VTL6-63 series small circuit breakers have functions such as short circuit protection, overload protection, control, isolation, etc. This series of circuit breakers is suitable for low-voltage termina distribution line protection in industries such as industrial, civil buildings, energy, communication and infrastructure, with an AC frequency of 50Hz/60Hz, a rated working voltage of AC240/400V and a rated working current of 63A. Product standard: IEC60898-1.
Electric parameter:
Number of poles ： 1P 2P 3P 4P
Rated Current: 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 (30°C)
Operating voltage (Ue) VAC: 1P,2P 240/400 ,3P,4P 400
Breaking capacity (Icu) : 6KA
Standards: IEC 60898-1
B Curve:
Instantaneous trip: (3-5)In
These MCBs are suitable for cable protection.
C Curve:
Instantaneous trip: (7-10)In
Suitable Domestic and residential applications and electromagnetic starting loads with medium starting currents.
D Curve:
Instantaneous trip: (10-14)In
Suitable for inductive and motor loads with high starting currents.
