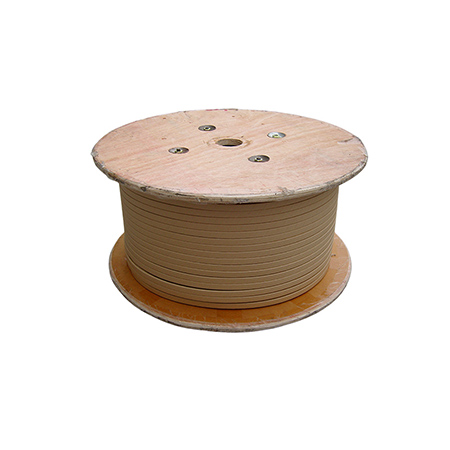

The Paper Wrapping Aluminium Wire is insulated with high-quality kraft paper, offering excellent thermal resistance and compatibility with lightweight electrical designs. It delivers strong resistance to transformer oil, making it an ideal choice for oil-filled transformer applications. Available in wooden spool packaging or customised according to customer requirements. Insulation: Kraft paper Properties: High heat resistance… Continue reading Paper Wrapping Aluminium Wire
Author: voltlux_admin

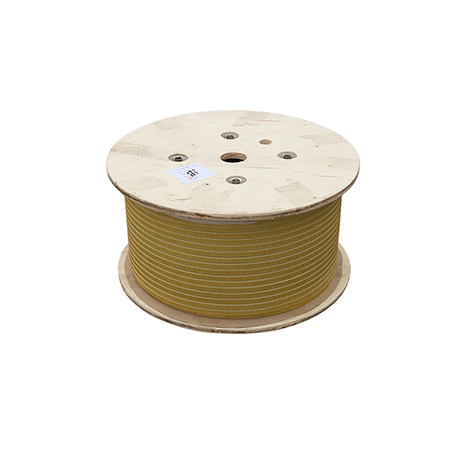

Glassfibre Wrapping Aluminum Wire
The Glassfibre Wrapping Aluminum Wire is insulated with 1 to 3 layers of high-strength glass-fibre yarn and impregnated with polyesterimide resin, providing outstanding mechanical stress resistance. Engineered for lightweight electrical designs, it is particularly suited for demanding applications such as generators, large motors, magnet coils, and welding equipment. Supplied in standard PT520 packaging. Insulation: 1-3… Continue reading Glassfibre Wrapping Aluminum Wire

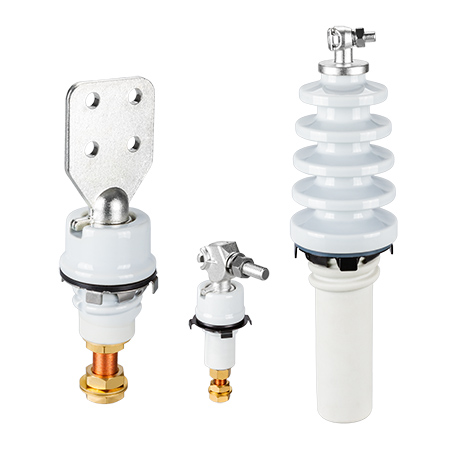

ANSI Ceramic Bushing Insulators
ANSI Ceramic Bushing Insulators – High-Performance Electrical Insulation Solutions Winding Wire offers a comprehensive range of ANSI standard ceramic bushing insulators designed for high-voltage electrical applications. Crafted from premium-grade electrical porcelain, these insulators provide exceptional mechanical strength, superior electrical insulation, and resistance to high temperatures, making them ideal for power distribution systems, switchgear equipment, and… Continue reading ANSI Ceramic Bushing Insulators

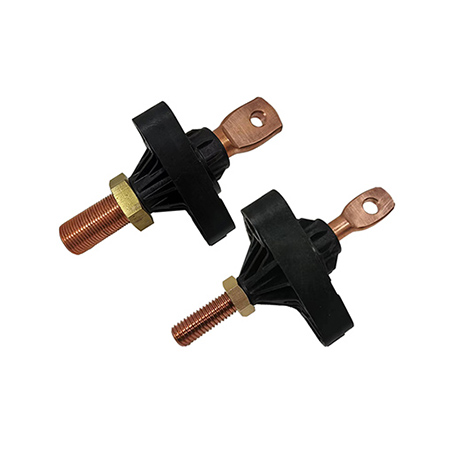

417A-1200A Triclamp LV Bushing
The 417A-1200A Triclamp Low Voltage Bushing is designed for pad-mounted transformers, switchgear, and other transformer-filled apparatus. It features high durability and superior performance in various electrical applications. This Triclamp-style integral low-voltage bushing comes with threaded copper studs (5/8″, 3/4″, or 1″) that are integrally bonded to the insulation for secure and efficient performance. Custom threaded… Continue reading 417A-1200A Triclamp LV Bushing

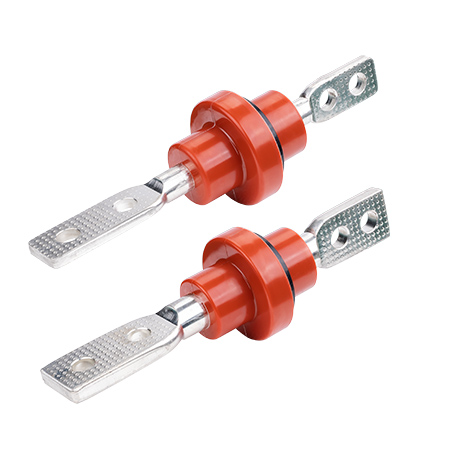

400-1600A Epoxy Resin Bushings
Our 400A–1600A Epoxy Resin Low Voltage Bushings are designed for pad-mounted transformers, switchgear, and other transformer-filled apparatus. Manufactured using advanced epoxy resin technology, these bushings offer superior electrical insulation and mechanical strength, ensuring reliable performance in demanding environments. Key Specifications: Voltage Class: 1.2 kV, BIL 30 kV Rated Current: 400A, 600A, 1000A, 1600A Application Temperature:… Continue reading 400-1600A Epoxy Resin Bushings

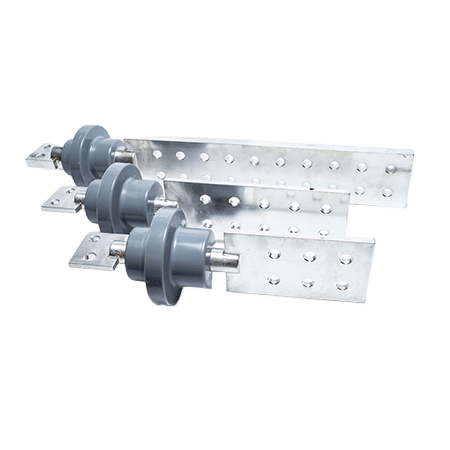

1000-5000A Epoxy Resin Bushings
Our 1000A–5000A Epoxy Resin Low Voltage Bushings are engineered for high-performance applications in dry-type transformers, switchgear, and other transformer-filled apparatus. Manufactured using advanced epoxy resin technology, these bushings offer superior electrical insulation and mechanical strength, ensuring reliable performance in demanding environments. All design tests are performed in accordance with the customer’s requirements or on the… Continue reading 1000-5000A Epoxy Resin Bushings

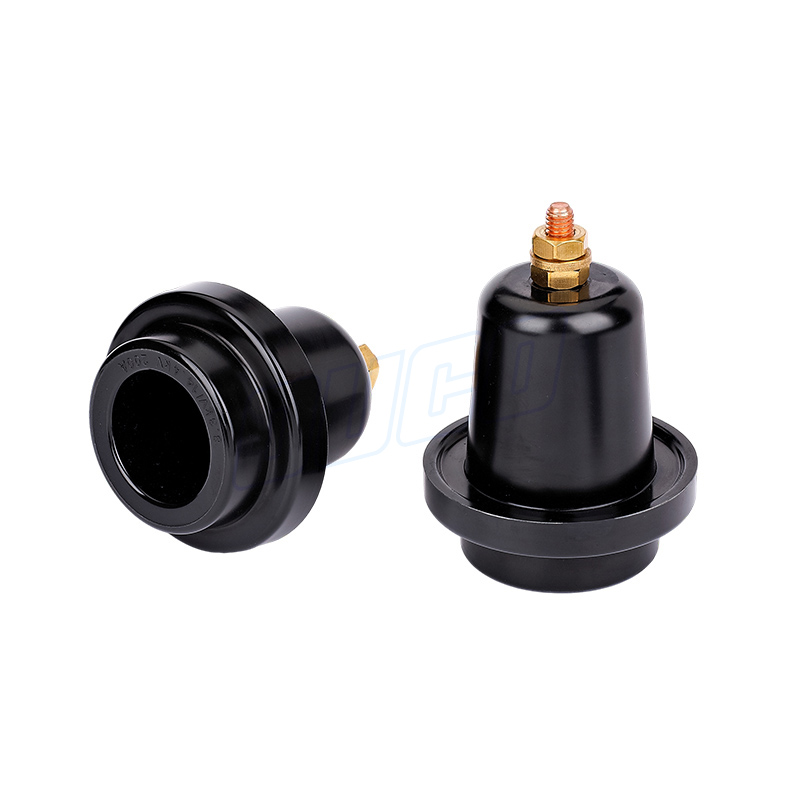

200A High Voltage Bushing Well
High Voltage Bushing Well – TGZ-15/200A (15kV 200A Class) The TGZ-15/200A Bushing Well is a high-performance insulating interface designed for use in 15kV 200A gas-insulated switchgear, ring main units (RMUs), dry-type transformers, and other medium-voltage electrical equipment. It is typically mounted on the high-voltage side of the apparatus, where it connects to either a circuit… Continue reading 200A High Voltage Bushing Well

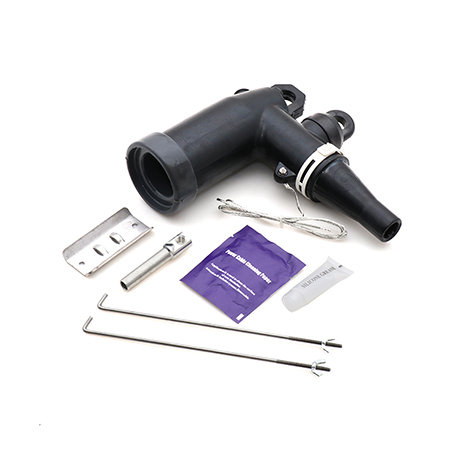

15KV 200A Loadbreak Elbow Connector
Loadbreak Elbow Connector – Safe, Reliable Medium Voltage Termination Solution Winding Wire’s Loadbreak Elbow Connectors are engineered for use in medium-voltage underground distribution systems, offering a secure, flexible, and fully shielded separable connection. These connectors allow for loadbreak switching, meaning they can be safely connected or disconnected under load conditions, making them ideal for pad-mounted… Continue reading 15KV 200A Loadbreak Elbow Connector

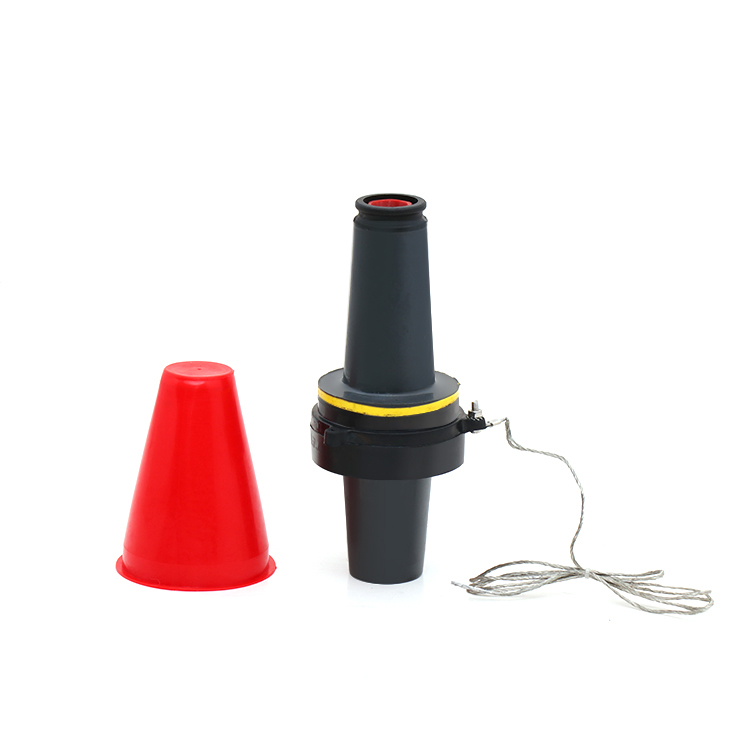

15KV 200A Bushing Insert
15kV 200A Bushing Insert – Reliable Loadbreak Interface for Medium Voltage Systems Our 15kV 200A Bushing Insert is a key component for connecting load-break elbow connectors to universal bushing wells in medium-voltage underground power distribution systems. Engineered to meet the requirements of IEEE Std 386, this insert transforms a standard bushing well into a fully… Continue reading 15KV 200A Bushing Insert

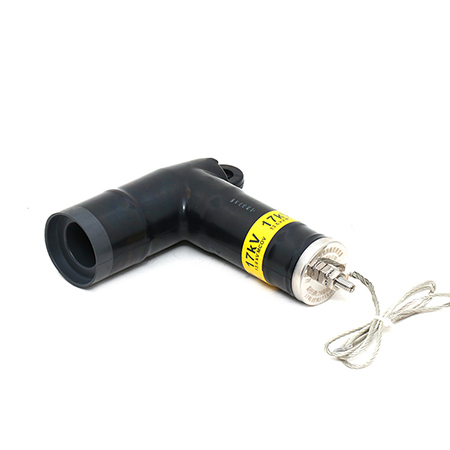

17/50kV Elbow Arrester
15kV 200A Elbow Arrester – Surge Protection for Medium Voltage Distribution Winding Wire’s 15kV 200A Elbow Surge Arrester is engineered to provide reliable overvoltage protection for medium-voltage underground power distribution systems. Designed to interface directly with standard 15kV 200A loadbreak bushings and elbow connectors, this arrester diverts harmful lightning and switching surges away from critical… Continue reading 17/50kV Elbow Arrester

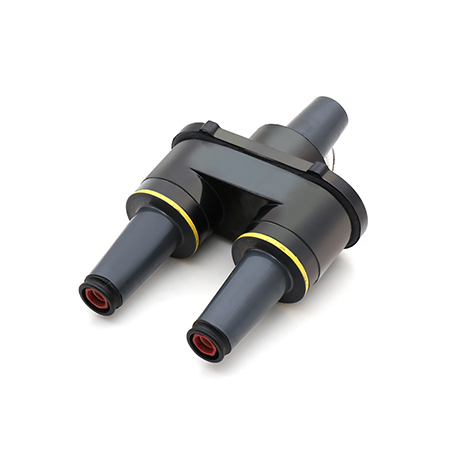

15KV 200A Rotatable Feedthru Insert
15kV 200A Rotatable Feedthru Insert – Versatile and Reliable Power Distribution Solution Winding Wire’s 15kV 200A Rotatable Feedthru Insert is designed to provide a compact, reliable, and efficient method of connecting two loadbreak elbow connectors in pad-mounted transformers and switchgear. This rotatable insert enables 360-degree orientation, making it ideal for space-constrained installations while enhancing flexibility… Continue reading 15KV 200A Rotatable Feedthru Insert

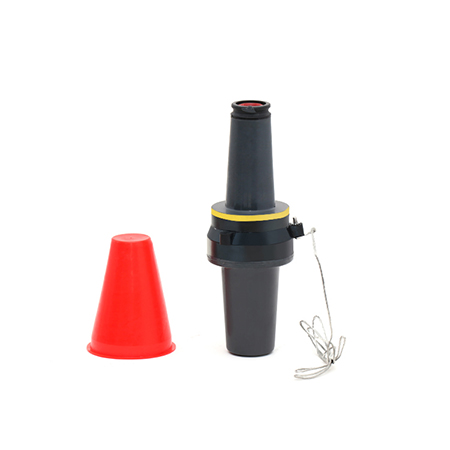

25KV 200A Bushing Insert
25kV 200A Bushing Insert – Reliable and Flexible Termination for Medium Voltage Systems Winding Wire’s 25kV 200A Bushing Insert provides a dependable interface between a loadbreak elbow connector and a universal bushing well, enabling safe and efficient loadbreak operation in medium-voltage distribution systems. Designed for pad-mounted transformers, switchgear, and junction cabinets, this bushing insert converts… Continue reading 25KV 200A Bushing Insert
