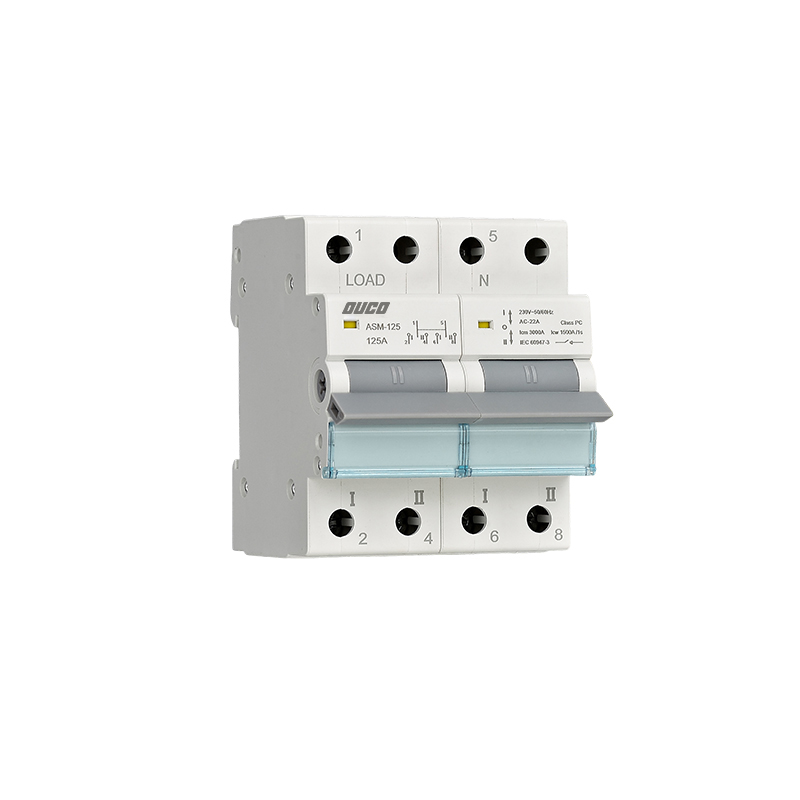

ASM Series Changeover Switch
Description:
⚫ Standard: IEC/EN947-3, GB14048.3
⚫ Frame Current (Im) : 63A
⚫ Rated Impulse Voltage (Ui) : 500V
⚫ Rated Voltage (Ue) : 230V(1P-2P), 400V(3P-4P)
⚫ Rated Impulse Withstand Voltage (Uimp) : 4kV
⚫ Rated Short Time Current (Icw) : 12ie/1s
⚫ Rated Making And Breaking Capacity: 3le, 1.05Ue, COSΦ=0.65
⚫ Rated Short Circuit Breaking : 20Ie/1s
⚫ Use Classes : AC22AAC-21B
⚫ Rated Working System : Uninterrupted Working System
